Thursday, July 4, 2013

Monday, November 26, 2012

Ixil hyperlow on my CB

The slipon purchased in Barcelona.

Tried it w\o catalytic.
Without catalytic the sound too loud ...

The pictures HERE

Tuesday, August 28, 2012

CB1000R Ermax installation

The Ermax's installation instruction is very poor in my opinion .

1. First of all remove original top fairing plate, by unpinning 2 plastic clips







2. The result shall be looked like this

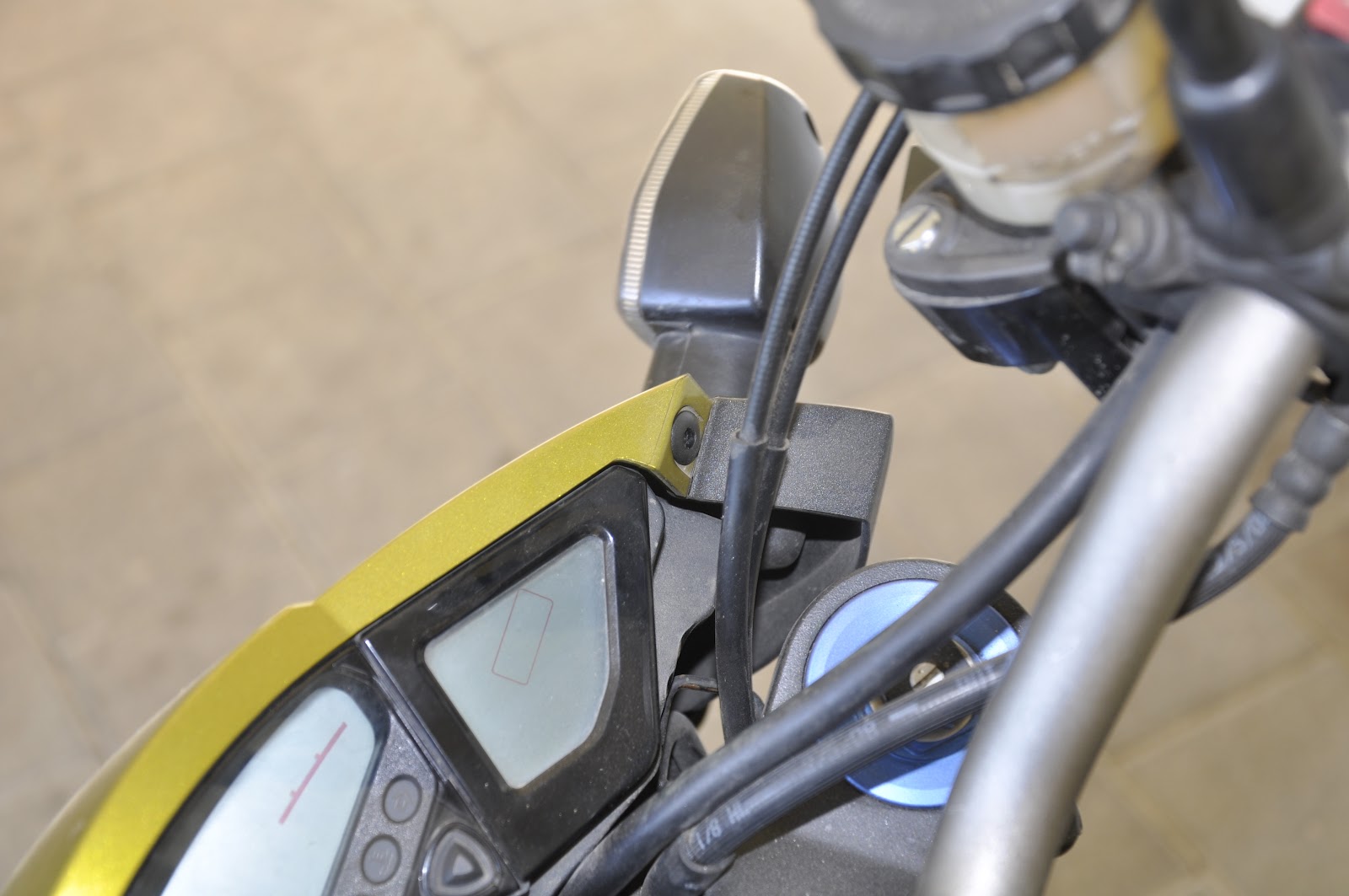

3. Now for removing all the light plate we have to release  the following 2 screw
   before:

   after:


4. Then you have to push up the all construction up (carefully, till the 2 pins released)

The result:

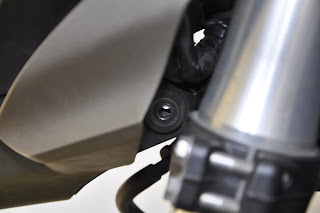

The pins ->




The hols for pins ->

5. Now you can release 3 bolts the installation manual is talking about.

You need to do it for expanding the holding form

Before adding the expansion:
















After the expansion:




6. Fitting the internal screen part, using one bolt screwed into a expansion frame



7. Fitting the screen itself on top of internal part


Tuesday, May 1, 2012

36000 Km Service















Done:
THROTTLE OPERATION   - Inspected
CRANKCASE BREATHER - Inspected

SPARK PLUGS                     - Inspected, looks very good (healthy brown )
ENGINE OIL                     - Replaced
ENGINE OIL FILTER      - Replaced
AIR FILTER                      - Replaced (K&N)
RADIATOR COOLANT   - Replaced
DRIVE CHAIN                  - Adjusted and Lubricated

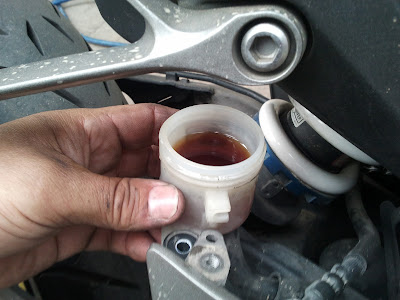

BRAKE FLUID                  - Replaced
CLUTCH FLUID                - Replaced
























Bleeding

Clutch



























Front Brakes

























Rear Brake











Saturday, April 28, 2012

Monday, April 16, 2012

Alternator and Battery replaced

Suddenly the bike was unable to start (at the morning of course, when I was harry to a meeting).
Eventually the alternator coils and the battery was replaced (both aftermarket).
The coils seems to be renewed once and the battery was original (2009).

Coils     1000 NIS
Battery  740 NIS
Work    300 NIS
The rest is taxes

Total Cost: 2400 NIS :-(((((
